Outer Dimensions: 49″W x 59″L x 80″H
Payload Dimensions: 40″W x 48″L x 58″H
Tare Wt – No Tanks: 948 lbs
Max Payload Weight: 4,000lbs
Coolant: Liquid CO2
Ambient Temp. Range: -30°C – +40°C ( -22°F – +104°F)
SnowSHIP™ Cooling Range: -27°C (-16.6°F – Ambient)
Set Point Duration
+5°C (41°F) 164.6 Hours
0°C (32°F) 123.4 Hours
-5°C (23°F) 98.8 Hours
-10°C (14°F) 82.2 Hours
-20°C (-4°F) 61.6 Hours
*Based on 8 x 20lb CO2 Tanks. 20°C/68°F Ambient Temperature with a pre-conditioned load that remains sealed throughout shipping.

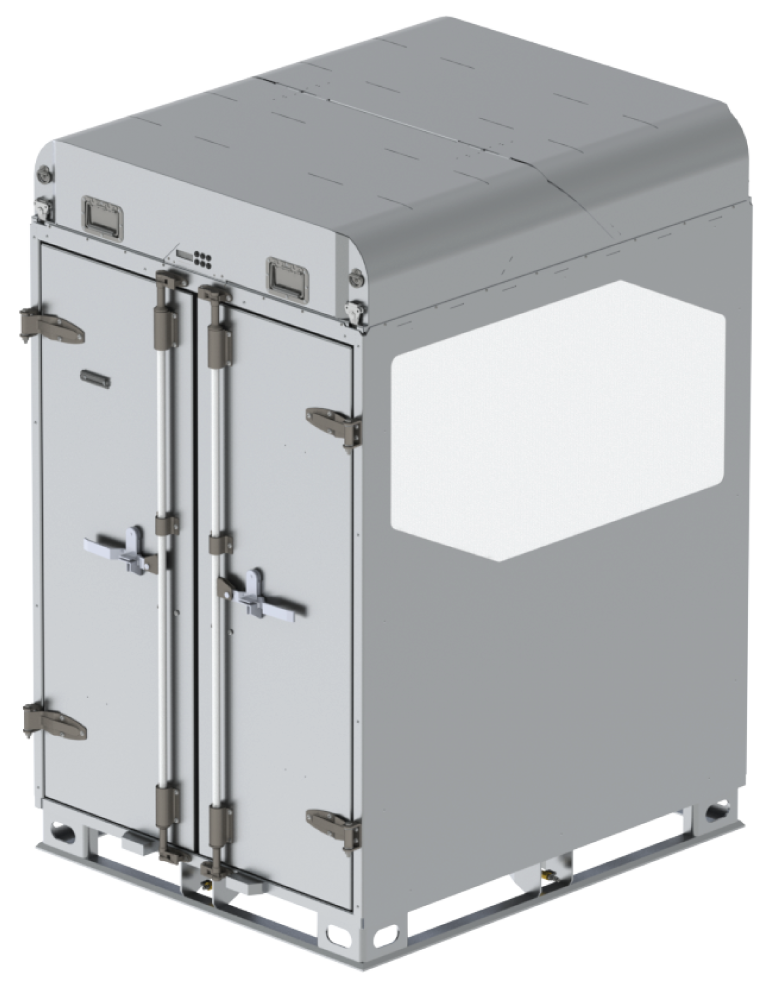

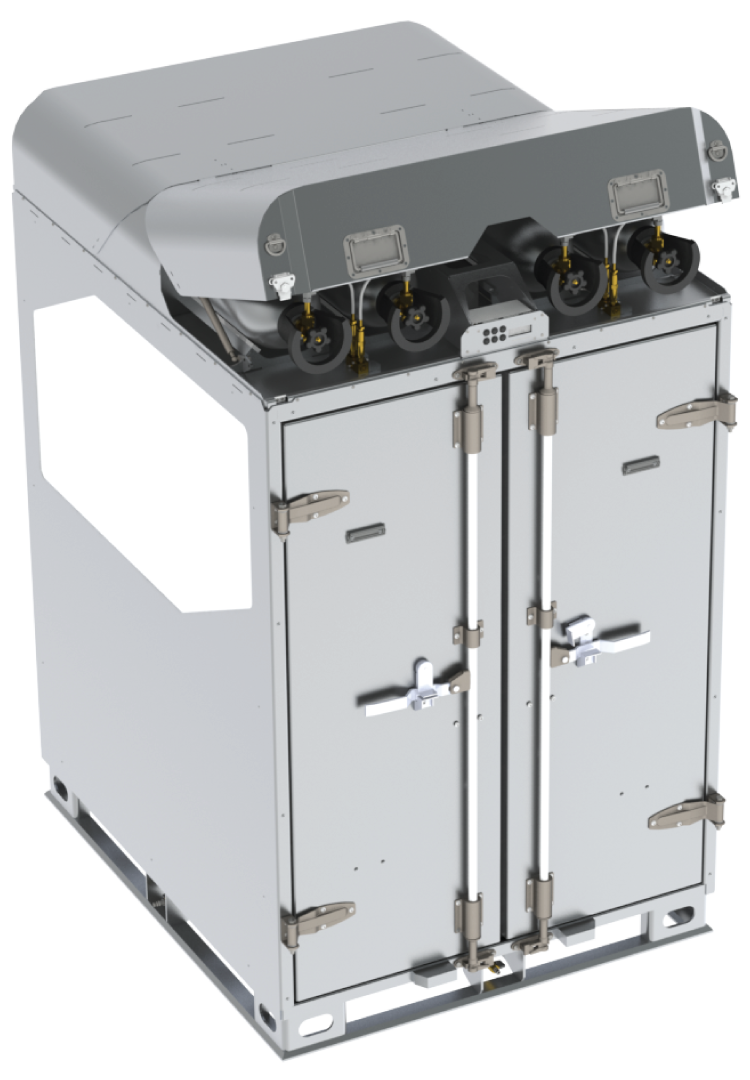

SnowSHIP™ was designed to transport temperature-sensitive goods such as food and pharmaceuticals. The core technology is scalable and can be customized to suit your unique business needs.
